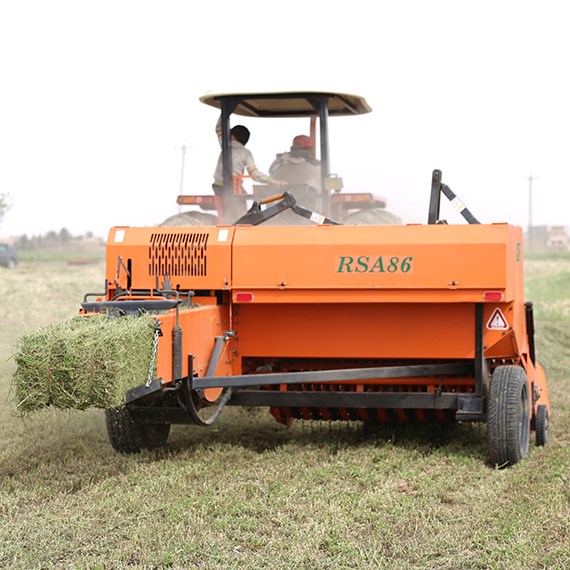

Baler RSA86

Baler RSA86

Rate it :
SKU: RSA86
made in: Iran
manufacturer: Ramesh Sanat Arak Co.
status: in stock

Baler RSA86 was the first baler that launched in 2007 in Ramesh Sanat Arak company. This square baler was designed in the small scale in response of the market needs for hay farms in Iran with less than 100 Acres area. RSA86 became a most prevail baler in Iran within first 3 years of entering to the market and we received growing number of orders from other countries. Ramesh Sanat Arak company decided to develop the line of production and respond to the agriculture market of some neighbors’ countries. Therefore, we expanded our area of activities to export RSA86 to Iraq, Turkmenistan, Tajikistan and Kazakhstan from 2011 and we have already sold 4000 sets of RSA86 with providing dealership network to support our services in more than 16 local and international locations. All parts are manufactured in Iran according to global standards. It has received test certificate from Technical and Engineering Research Center of Karaj.



More information
Specifications of Baler RSA86
  • It is equipped with hydraulic lift pickups.
  • Feeding system is equipped with two hooks without transmission helix for easy feedin
  • Strong body compared to existing balers.
  • Higher feeding speed than similar devices
Characteristics of RSA86
  • Good feeder: Since the system is equipped with hook, forage enters the feeding channel easily and pressed uniformly.
  • Packing speed: Baler RSA86 has higher speed and lower depreciation compared to similar products due to its unique design.
  • Control and Density of Packets
  • Its height from ground level is adjusted automatically.
Terms of sale
  • Free installation
  • One year warranty
  • 10 years After-Sales Services
  • Wide consumer goods sale network in Iran
  • Manufacturing more than 1000 devices annually
specification header
Technical Specifications
Size of packets :
Cross section 46*36 cm
Length adjustable from 30 to 130 cm
Forage lift:
Internal opening width 156 cm
Input opening width 175 cm
Distance between the ending fingers 141 cm
Cylinder diameter 36 cm
Number of fingers 96
Number of pins holding the fingers 4
Density piston:
Displacement path 76 cm
Speed 78 pulses per minute
Flywheel:
Diameter 69 cm
Weight 108 kg
Characteristics of the tractor :
Minimum output power of the tractor’s back shaft 41 horse power
Speed of the back shaft 540 rpm
Volume of the gearbox :
Volume of the required oil 8/3 lit
Oil type gearbox oil 90
Tires :
Right tire 65/205-15
Left tire 0/10-15
Total dimension :
Maximum height 175 cm
Length 478 cm while moving
Width 259 cm
Weight 1530 kg
